Headphones Volume

Each audio input can have its own independent headphones volume set.

This is great for situations where you want an audio source such as a microphone audible on the final recording or stream but do not want to hear

it in your own headphones as the slight audio delay coming from your own microphone can be disorienting.

The headphones volume circle can be dragged up to move to the right (more volume) or dragged down to move to the left (less volume).
Or the headphones icon can be clicked to toggle between full volume (green) and muted (grey).

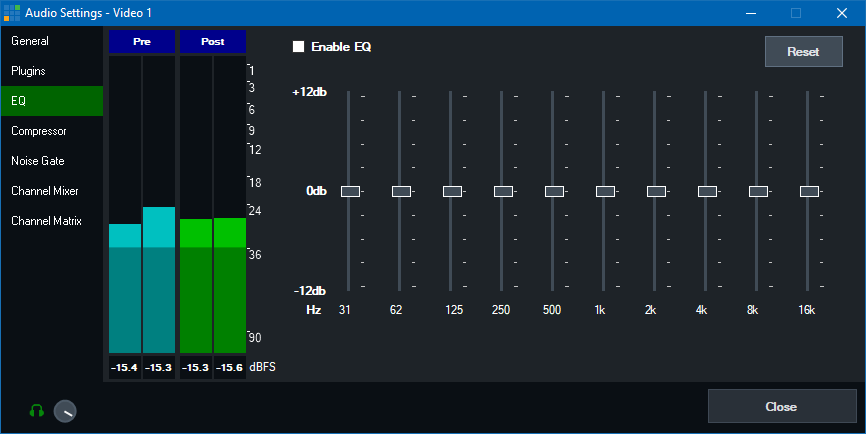

Pre / Post

These audio meters can be used to monitor the audio audio at the pre-effects stage (for any effects, volume or gain, including delay)

and the post-effects stage (after all effects, volume, gain and delay have been applied)

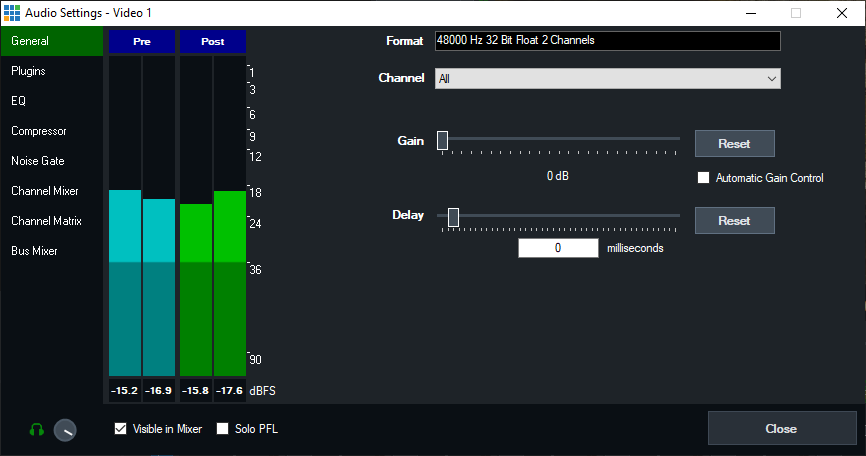

Displays the current audio format of the input


Select the audio channel to use for this input.

If you have a Microphone plugged into the left channel or right channel independently. Select SeparateMono here.

Separate mono allows you to adjust the volume of both mono channels independently from the Audio Mixer.

The audio from each microphone will be audible on both the left and right channels simultaneously.

For finer control of how different channels are mixed. See Channel Mixer and Channel Matrix below.


Select the gain (or amplification) in decibels.

Gain is added after the compressor. (See below)


Delay the audio source in milliseconds

Visible in Mixer

Untick this box to hide this Input from being displayed in the Audio Mixer.

Solo PFL

Enable PFL when using the Solo button.
See the Solo section under Audio Mixer for more information.

Meters Pre-Fader

Set the audio meters for this Input to be pre-fader. These are the meters displayed in the main user interface, multiview output and the Post meter in this window.


See Audio Plugins

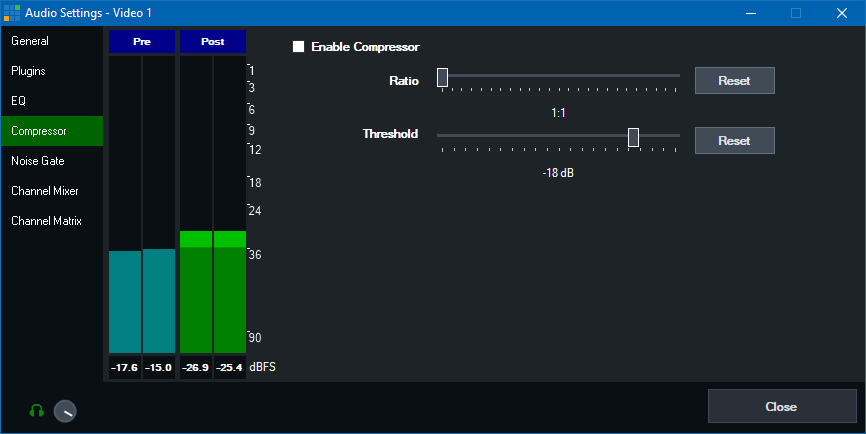

Compressor is a standard dynamic audio compressor.

Ratio: Specify a Ratio other than 1:1 to turn on the compressor.

Threshold: Specify the sound level for compression. Any audio above the threshold will be compressed (volume reduced) according to the ratio above.

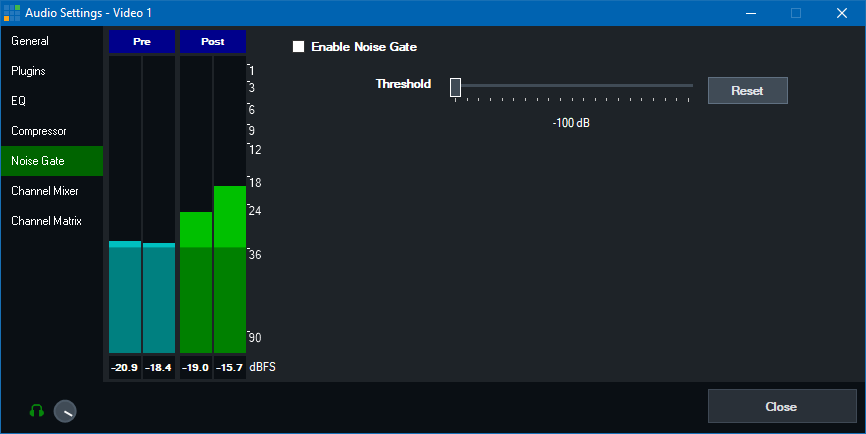

Noise Gate

The Noise Gate is a handy way of reducing noise on an Audio Input such as a Microphone

It works by quickly fading out the audio when it drops below a certain dB (decibel) Threshold

Channel Mixer

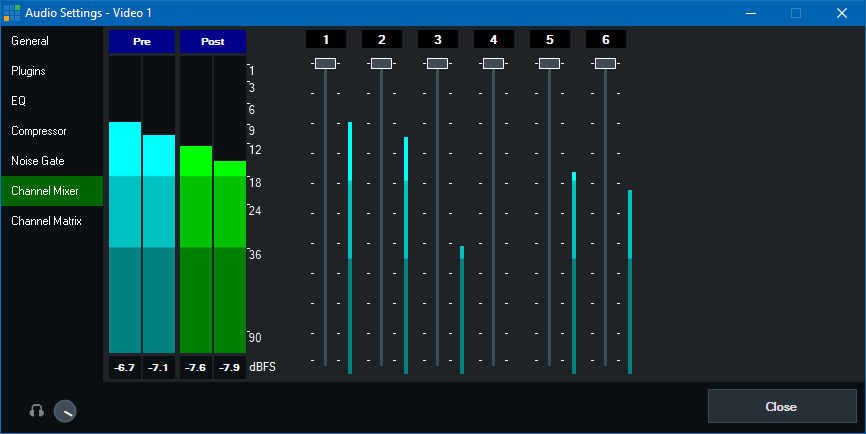

The channel mixer can be used to set the volume level of individual channels.
An independent audio meter is also available for each channel.

Channel Matrix

Channel Matrix is an 16x16 audio router built in to every input.
This can be used for simple setups such as routing a mono Microphone channel to both Left and Right, all the way up to advanced scenarios
where each of the independent NDI or SDI Embedded audio channels can be routed to one of the eight stereo audio buses.

Each column represents a source channel, each row represents a destination bus that the channel can be routed to.

Example: Convert Mono Microphone on Channel 1 to Stereo

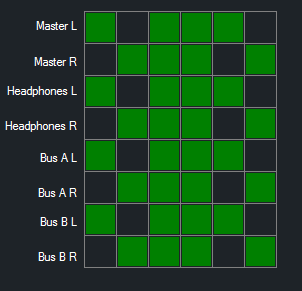

Click all the boxes so they are green like the following:

Example: Route 3 independent stereo audio language pairs to the 3 output buses.

The first two channels are routed to Master/Headphones L+R, the second two are routed to Bus A L+R and the final
two are routed to Bus B L + R.

Bus Mixer

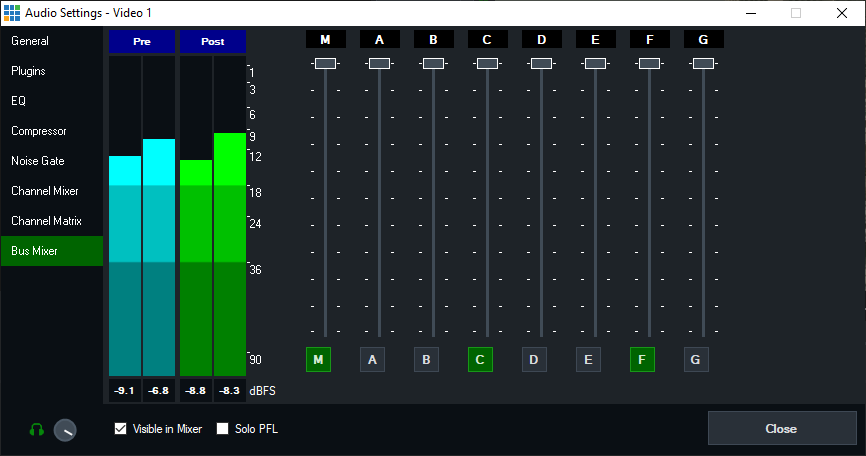

Control all Bus volumes and mute for an Input
