Key/Fill output is supported on selected Blackmagic capture cards.

Supported Devices

  • Decklink 4K Extreme / Extreme 12G / Pro
  • Decklink Duo 2 / Quad 2 (see additional configuration steps below)
  • UltraStudio 4K / 4K Extreme / 4K Extreme 3 / HD Mini
  • Bluefish444 KRONOS series cards

Configuration for Duo 2 / Quad 2

When using the Decklink Duo 2 or the Decklink Quad 2, port 1 will need to be configured in the Blackmagic Desktop Video Utility

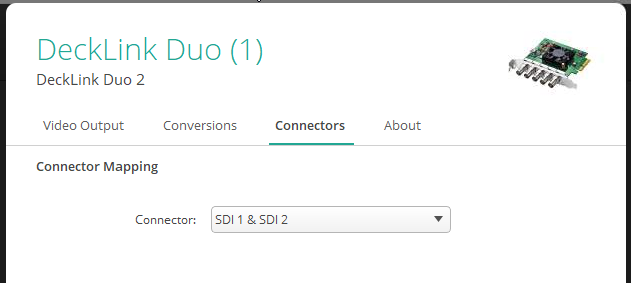

to group together SDI ports 1 and 2 as shown below:

External Output Configuration

When selecting a supported device in External Output settings in vMix, an Alpha Channel dropdown box will appear as shown below:

None: No alpha channel, send the video output to the device as normal.

Straight: Output two channels over the device, Key + Fill on separate SDI ports. (This is also known as Linear)
Premultiplied: Same as Straight except the Fill channel will be "Premultiplied" check with the receiving device documentation to determine which of these options should be selected.

Blackmagic ATEM Configuration

The Key + Fill outputs will be sent over SDI 1 and SDI 2 (or SDI A / SDI B) respectively. These can then be connected to two spare inputs on an ATEM switcher.
From the ATEM switcher control panel keyer settings, these two inputs can be selected as Key and Fill to complete the process.
