vMix supports a number of independently controllable outputs depending on the edition.

vMix 4K and higher supports 2x Fullscreen and 4x External outputs with all other editions supporting 1x Fullscreen and 1x External output.

Outputs can be configured show a different source out of the options described on the Fullscreen help page.
For example the Fullscreen output can be configured to show the MultiView Output without affecting what is sent to the Recording or Stream.

Outputs can be sent to Video Call, Instant Replay, SRT, Streaming, Zoom and NDI, for more information refer to the relevant topic for each feature.

Fullscreen 1 and 2

These outputs control the computer Display outputs configured under the Display tab and are only available from the output ports on the Graphics Card.

Output 1

This is the primary output in vMix, also known as "Program". This is the Output that is used by External 1 and is also the source for Streaming and Recording by default.

Output 2, 3, 4

These are additional outputs which are shared with the External 2, 3 and 4 outputs respectively.
These can also be assigned to Video Call, Instant Replay, SRT, Streaming, Zoom and NDI in vMix 4K and higher editions.

Cameras / Calls / Audio Inputs

This option can be enabled to automatically convert any cameras, calls and audio inputs in the current vMix session into live NDI outputs.
See the NDI section for more information.

Audio Outputs

This option can be enabled to convert all enabled audio buses under the Audio Outputs tab into live audio-only NDI outputs.
See the NDI section for more information.


If the Source option set to "Output" the Overlay check boxes can be used to customise which overlays are displayed on that particular Output.

For example a "clean feed" can be set for the recording with all overlays turned off, while all the overlays can be retained on Fullscreen.

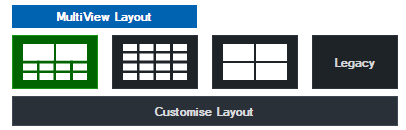

MultiView - Customise Layout

Click Customise Layout to change the order inputs appear in the MultiView monitor.

The order of inputs can be changed according to their number.

Additionally they can be ordered by type.

In the example below the first two cameras in a production will be shown in the first two MultiView input slots regardless of where those cameras actually appear in your production.

Title Location

The headings for each item in the MultiView can be placed either above or below the preview.

Preview/Output Headings

The headings on the Preview/Output windows is set to display "Preview" and "Output" by default but can be changed

here to display the actual input title.
