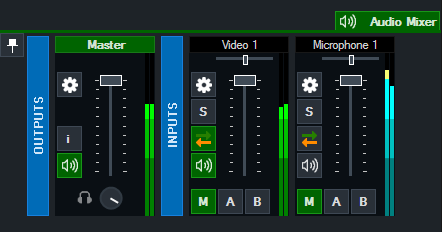

Click the Audio Mixer button on the right hand side of the main interface to bring up the Audio Mixer tab as shown below.
Each fader also includes an Audio Level Meter for the Left and Right channels respectively.
The Audio Mixer can be detached from the main vMix window by clicking the Pin button.
To dock the Audio Mixer back again, click the Minimise button of the detached Audio Mixer window.
The Master audio mix is displayed here alongside Bus A and B if they have been configured.
Headphones volume can be configured independently by spinning the Headphone volume control knob.
Each Input that contains audio will be displayed here.
Click the cog button to display the Audio Settings window.
Click the Solo button to preview Input audio in the Headphones without affecting the mix.
Solo audio is Post-Effects and Post-Fader and will be audible even if the Input is muted.
Right click the Solo button to Solo multiple inputs at the same time.
Click the speaker icon to Mute/Unmute an audio input.
Automatically Mix Audio
Click the Green and Orange Arrow button to enable/disable automatic mixing of audio.
This option is also known as "Follow" on traditional video switchers.
vMix allows for up to eight independent audio buses (including Master) to allow for complex audio routing scenarios including mix minus.
M is the Master or Default audio mix and is sent to Recording, Streaming and External Output.
A, B, C, D, E, F, G
These are seven additional audio mixes that are sent to the respective Audio Output devices configured in the Audio Outputs settings window.
Click the M, A or B buttons underneath each input to configure each independent each mix. By default all new inputs will be sent to the Master mix only.
To enable or disable mixes C-G right click the A or B buttons to display a selection menu.
Sending Audio Bus to Master
Click the M button underneath buses A-G to include the audio in Master and Headphones.
Note: vMix Call Master/Headphones audio excludes any buses sent to master using this method as doing so would prevent mix minus from working correctly.
Note: The Speaker/Mute button controls the audio for all audio buses not just the Master or M bus.

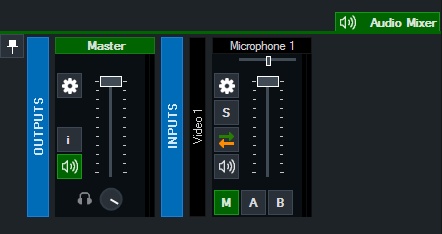

All mixers can be collapsed and restored by right clicking the Title of the mixer.
