vMix Reference Systems are recommended
specifications you can use when building a custom live production system for vMix.
To view a list of resellers who can build to these specifications click here to find a reseller.
Ruby - 8 Cameras with 4 Camera Instant Replay |
 |
Camera Inputs8 SDI Cameras HD 1080p |
 |
Streaming1080p 20Mbps
Multi Bitrate SD + HD |
 |
Instant Replay4 Cameras HD 1080p 100Mbps |
|
 |
Total Inputs50 |
 |
Recording1080p 75Mbps MP4
|
 |
NDI4 NDI Sources up to HD 1080p |
|
 |
Build Guide
The part numbers below represent components we have tested and verified for vMix
but you can modify these to suit your needs. |
 |
MotherboardGigabyte Z370 AORUS Gaming 5 (Intel Z370) |
 |
Graphics CardNVIDIA GeForce GTX 1060 |
 |
CaseATX Case
(SilverStone Redline RL05 Black/Red in photo) |
|
 |
SSDSamsung 960 EVO NVMe M.2 1TB SSD |
 |
PSU750W ATX PSU |
 |
Capture CardAJA Corvid 88 or
Blackmagic Decklink Quad 2 |
|
 |
CPUIntel Core i7 8700K 4.2GHz +
Cooler Master MasterLiquid 120 Liquid CPU Cooler |
 |
RAM16GB (2x8GB) DDR4 |
|
Operating SystemWindows 10 |
|
Emerald - 4 Camera Streaming |
|
Camera Inputs4 HDMI or SDI cameras up to HD 1080p
|
|
StreamingUp to 1080p 20Mbps |
|
NDI2 NDI sources up to HD 1080p |
|
|
Total Inputs30 |
|
RecordingUp to 1080p 75Mbps MP4 |
| |
|
|
 |
Build Guide
The part numbers below represent components we have tested and verified for vMix
but you can modify these to suit your needs. |
|
MotherboardGigabyte Z270-Gaming 3 Intel Z270 |
|
Graphics CardNVIDIA GeForce GTX 1050 Ti |
|

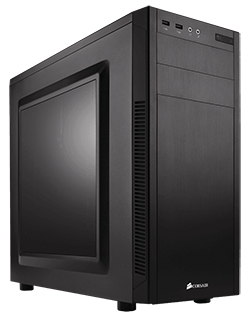

CaseCorsair Case
(Corsair Carbide Series 100R Mid Tower Case in photo) |
|
|
HDDSamsung 850 EVO 500G SSD |
|
PSU500W ATX PSU |
 |
Capture CardMagewell Pro Capture Quad HDMI
or
Magewell Pro Capture Quad SDI
or
Blackmagic Decklink Duo 2 SDI
|
|
|
CPUIntel Core i5-7500 3.4GHz |
|
RAM16GB (2x8GB) DDR4 |
|
Operating SystemWindows 10 |
|
Sapphire - 4 Camera laptop |
|
Camera Inputs4 SDI Cameras HD 1080p
or 1 HDMI Camera + 3 SDI |
|
Streaming720p 8Mbps |
|
NDI2 NDI sources up to HD 1080p |
|
|
Total Inputs20
|
|
Recording1080p 25Mbps |
| |
|
|
 |
Build Guide
The part numbers below represent components we have tested and verified for vMix
but you can modify these to suit your needs. |
 |
LaptopASUS 17.3" ROG Strix GL702VM Notebook with Thunderbolt3
or
Thunderbolt 3 laptop with NVIDIA GTX 1060, Intel 7700HQ and G-Sync Display
|
|
 |
AccessoriesStarTech Thunderbolt 3 to Thunderbolt Adapter
Thunderbolt 2 Cable |
|
 |
Capture CardAJA IO 4K |
|
Obsidian - 4K Streaming and Recording
4K Note: Frame rates 25, 29.97 or 30 recommended. For HD up to 60p is supported.
Note: High Input Performance Mode should be enabled in vMix Settings -> Performance for the best results when using this system.
|
|
Camera Inputs6 (4K) or 24 (HD)
|
|
Streaming2160p (4K) or 1080p up to 75Mbps
Multi Bitrate SD + HD |
|
Instant Replay4 Cameras HD 1080p 100Mbps
(4K not available) |
|
|
Total Inputs15 (4K) or 80 (HD) |
|
Recording2160p (4K) 75Mbps MP4
|
|
NDI4 (4K) or 8 (HD) |
|
 |
Build Guide
The part numbers below represent components we have tested and verified for vMix
but you can modify these to suit your needs. |
|
MotherboardGigabyte X299 AORUS Gaming 7 Motherboard |
|
Graphics CardGigabyte GeForce GTX 1080 Ti Gaming OC 11GB |
|
CaseCooler Master MasterCase Pro 5 Modular Mid Tower Case |
|
|
HDDSamsung 960 EVO NVMe M.2 1TB SSD
|
|
PSU800W ATX PSU
|
|
Capture CardMagewell Pro Capture AIO 4K Plus
Yuan High-Tech SC560 N1-LV
Yuan High-Tech SC560 N4
Blackmagic Intensity Pro 4K
Blackmagic Mini Recorder 4K
|
|
|
CPUIntel Core i9 7900X +
Cooler Master MasterLiquid Pro 240 Liquid CPU Cooler |
|
RAM32GB (4x8GB) DDR4 |
|
Operating SystemWindows 10 |
|
